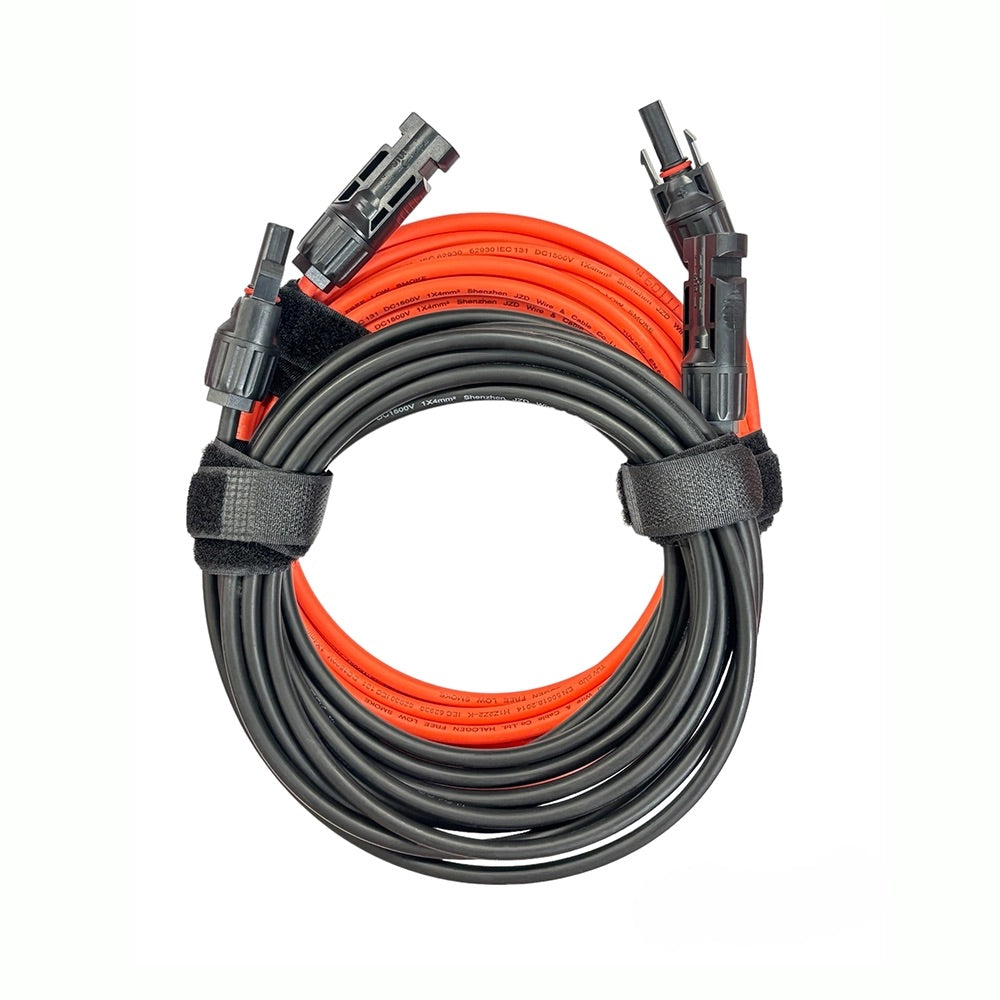

MC4 Solar Extension Cable 5m - 1500V, IP67, 4mm²
MC4 Solar Extension Cable 5m - 1500V, IP67, 4mm²
Create a more flexible solar installation with this 5-metre MC4 extension cable. It increases the distance between a solar panel and compatible photovoltaic equipment, allowing the panel to remain in direct sunlight while the connected battery system, charge controller, adapter, or portable power station can be placed in a safer and more convenient location.
The cable is equipped with one MC4-compatible male connector and one MC4-compatible female connector. The locking connector design helps maintain a secure connection during outdoor use and reduces the risk of accidental disconnection.
A 4 mm² single-core conductor supports stable DC power transmission with reduced resistance over the extended 5-metre length. The cable is rated for photovoltaic systems with operating voltages up to DC 1500V.
The weather-resistant jacket is designed for outdoor solar applications. When both MC4 connectors are fully connected, the connection provides IP67 protection against dust and temporary water exposure.
Technical Specifications:
- Product Type: Solar Extension Cable
- Cable Application: Photovoltaic DC systems
- Cable Length: 5 m
- Connector End A: MC4-compatible male connector
- Connector End B: MC4-compatible female connector
- Connector Configuration: Male to female
- Conductor Configuration: Single-core
- Conductor Cross-Section: 4 mm²
- Cable Marking: 1×4 mm²
- Maximum Rated Voltage: DC 1500V
- Connection Protection Rating: IP67 when fully connected
- Cable Designation: H1Z2Z2-K
- Standard Marking: EN 50618:2014
- International Standard Marking: IEC 62930
- Halogen-Free: Yes
- Low-Smoke: Yes
- Current Type: DC
- Installation Type: Indoor and outdoor
This product includes one single-core MC4 extension cable.
Some photovoltaic systems use separate positive and negative cables. In that case, two extension cables may be required.
Solar panels, portable power stations, batteries, charge controllers, adapters, and other accessories are not included.
Package Includes:
- 1 × MC4 Solar Extension Cable, 5 m
