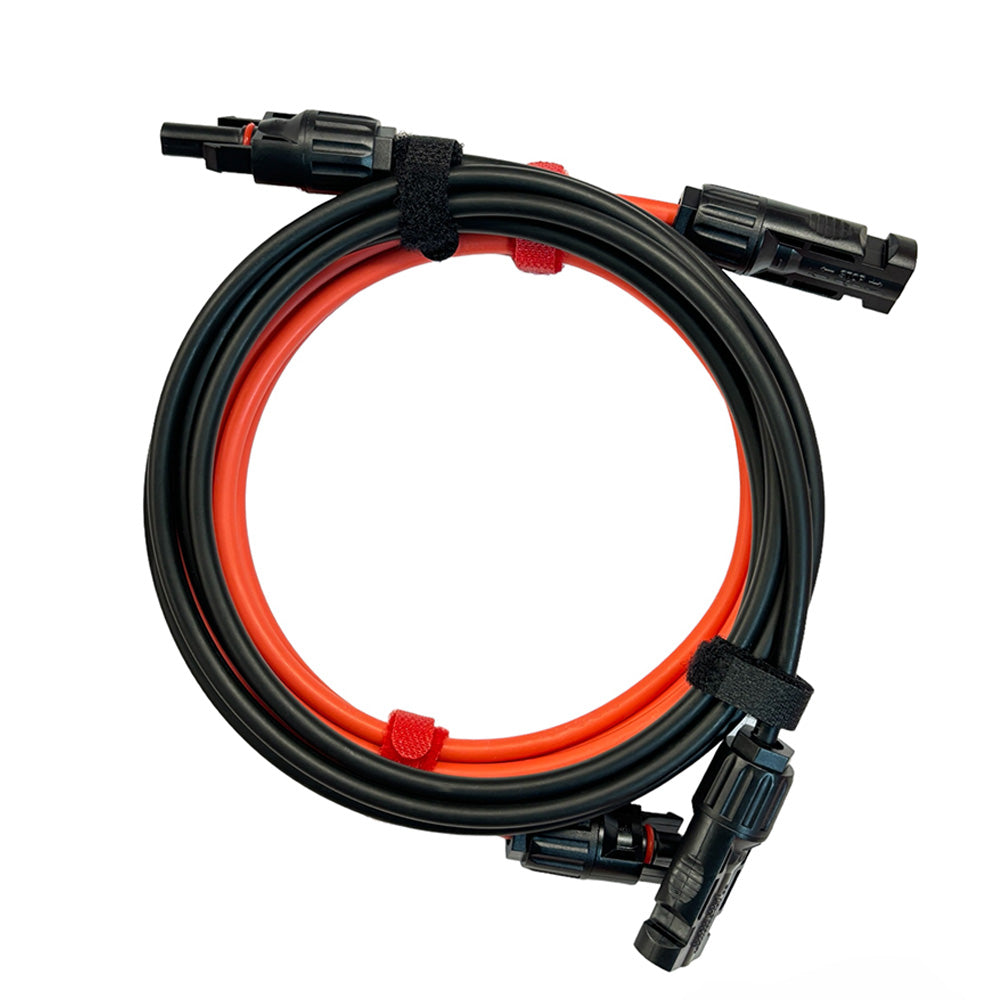

MC4 Solar Extension Cable 2m - 1x4mm², 1500V, IP67

The MC4 Solar Extension Cable is designed to extend the connection between solar panels and compatible photovoltaic equipment equipped with MC4 connectors.

The 2-metre cable provides additional flexibility when positioning solar panels, charge controllers, batteries, adapters, and portable power systems.

It features a single-core conductor with a cross-sectional area of 4 mm² and supports DC voltage up to 1500V. The weather-resistant cable jacket is suitable for indoor and outdoor photovoltaic installations.

The male-to-female MC4-compatible connectors provide a secure connection and IP67 protection when correctly and fully connected.

Technical Specifications:

• Product Type: Solar Extension Cable
• Length: 2 m
• Connector End A: MC4-compatible male connector
• Connector End B: MC4-compatible female connector
• Connector Configuration: Male to female
• Conductor Configuration: Single-core
• Conductor Cross-Section: 4 mm²
• Cable Marking: 1×4 mm²
• Maximum Rated Voltage: DC 1500V
• Connection Protection: IP67 when fully connected
• Cable Designation: H1Z2Z2-K
• Standard Marking: EN 50618:2014
• International Standard Marking: IEC 62930
• Halogen-Free: Yes
• Low-Smoke: Yes
• Application: Photovoltaic and solar power systems
