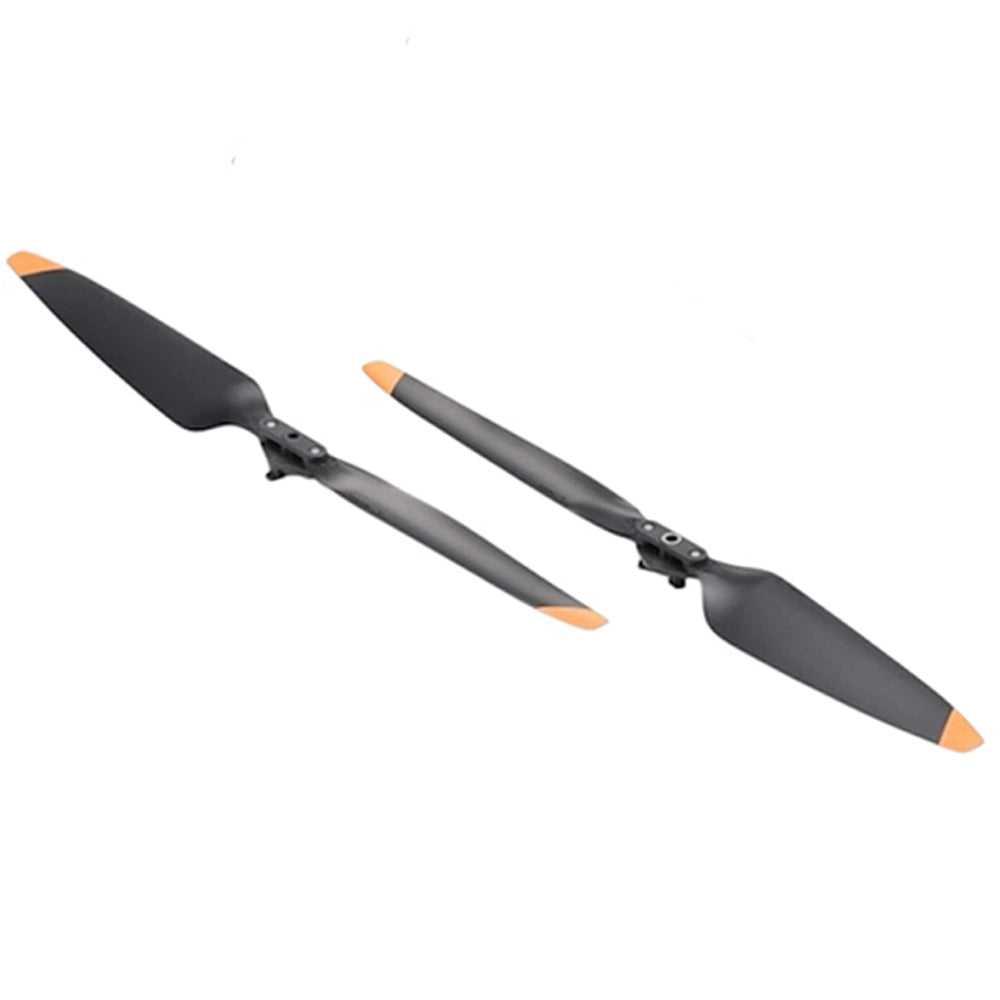

DJI Matrice 4 Series 1157F Propellers: 1 Pair A+B
DJI Matrice 4 Series 1157F Propellers: 1 Pair A+B
The DJI Matrice 4 Series 1157F propeller set is designed for replacing damaged, worn, or missing propellers on DJI Matrice 4T and DJI Matrice 4E drones.
The package contains one matched A+B pair, consisting of two folding propellers with opposite rotation directions. This configuration allows the propellers to be installed on the corresponding motor positions according to the A/B markings.
The quick-release mounting system allows each propeller to be installed without special tools. Align the propeller with the correct motor, press it down, rotate it into the locked position, and check that it is securely attached before flight.
The folding blade design helps reduce the space required during transport and storage. The propellers are made from durable composite material and are suitable for regular replacement, field maintenance, or carrying as a spare pair.
Technical Specifications:
- Series: DJI Matrice 4 Series
- Propeller Model: 1157F
- Manufacturer Part Number: CP.EN.00000557.01
- Product Marking: MT4SNP
- Quantity: 1 pair
- Total Propellers: 2
- Propeller Configuration: 1 × A and 1 × B
- Rotation Directions: CW and CCW
- Mounting Type: Quick-release
- Blade Design: Folding
- Material: Composite material
Compatibility:
- DJI Matrice 4T (Thermal)
- DJI Matrice 4E (Enterprise)
Installation:
- Switch off the drone before replacing a propeller.
- Match the A or B marking on the propeller with the corresponding motor position.
- Place the propeller onto the motor mount.
- Press down and rotate until the quick-release mechanism locks.
- Check that the propeller is firmly secured and rotates freely.
- Repeat the procedure for the second propeller.
